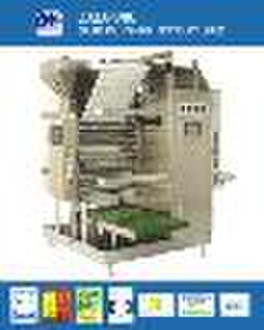

DXDF 900 Powder Packing Machinery

DXDF 900, which independently invented by our company according to the various kinds of powder, is a multi-line automatic packing machine. DXDF 900, which is controlled by PLC, meets the standard of GMP, is suitable for the pharmaceutical industry to mass production.DXDF 900, which adopts the servo motor and auger to feed powder products, is mainly applied for feed powder products.DXDF 900 has the characters, such as high speed for run, weigh high accurately, easy adjustment, etcDXDF 900 Main Specifications Item Unit Specification Width of sachet mm 50 - 90 Length of sachet mm 60 - 160 Loading weight of each sachet ml 2 - 20 Productivity sachets/ min 120 - 150 (will change with the size of sachet) Max slitter lines lines 4 - 6 Max width of packing material mm 900 Weigh accuracy % ±5 -±8 Max outer diameter of packing material mm Φ300 Inner diameter of packing material mm Φ70 -Φ76 Total power Kw 7.5 Power source V Hz Phase AC 380 50 3 Weight Kg 1200 Overall size (Length×Width×High) mm 1560×1620×2100 Main Specifications of DXDF 900 Powder Supplying Structure Item Unit Specification Suitable range for powder μ ≤ 200 Servo motor Fuji® servo system Power sourse V Hz Phase AC 220 50 2 Weight Kg 30 Overall size ( Length×Width×High) mm 830×570×400Wonder® will be free obligation if any alteration occurred from the above specifications.
